To be able to switch certain relays in Home Assistant via an ESP32, I tested a relay board and integrated it via ESP-Home.

Necessary hardware

Besides an appropriate hardware for Home Assistant, I married an ESP32 with a 4-channel relay board:

ESP32 Dev Kit C V4 NodeMCU WLAN WiFi Development Board
on amazon.com:

HiLetgo ESP-WROOM-32 ESP32 ESP-32D Devel...

Availability: Now
Price: $9.99
as of: 2024-11-21 09:42 Details
[Product prices and availability are accurate as of the date/time indicated and are subject to change. Any price and availability information displayed on amazon.com at the time of purchase will apply to the purchase of this product.]
4-Channel Relay Board
on amazon.com:

SunFounder Lab 4 Relay Module 5V 4 Chann...

Availability: Now
Price: $7.99
as of: 2024-11-21 09:43 Details
[Product prices and availability are accurate as of the date/time indicated and are subject to change. Any price and availability information displayed on amazon.com at the time of purchase will apply to the purchase of this product.]

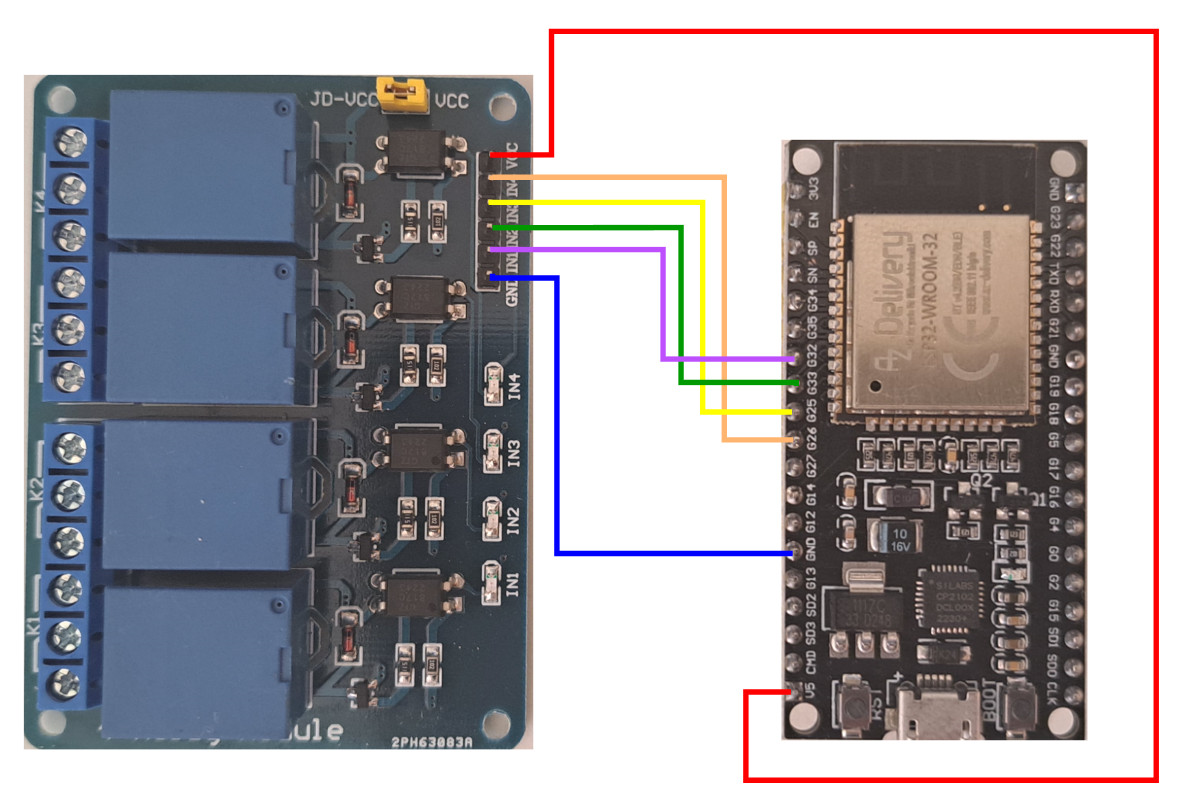

Wiring

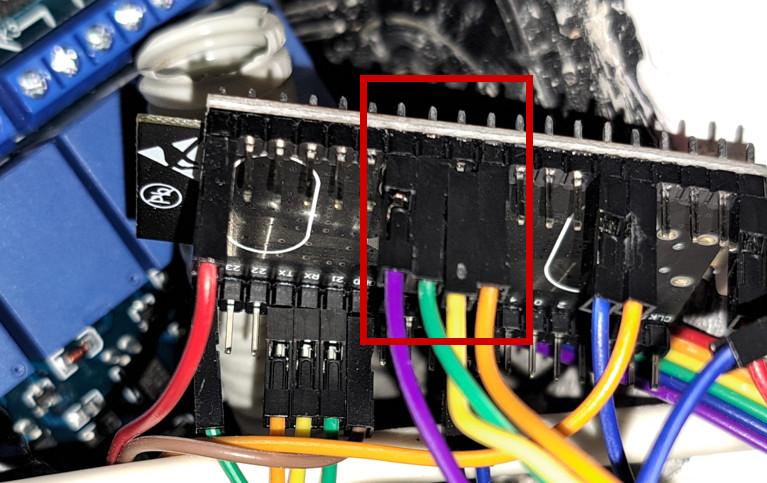

As GPIO-PINs I used the PINS G25,26,32 and G33 for testing:

ESP-Home

If you already have the ESP32 connected to Home Assistant, you can add the relay board with the following lines:

...
switch:
  - platform: gpio
    pin: GPIO32
    name: Relay1
    id: relay1
  - platform: gpio
    pin: GPIO33
    name: Relay2
    id: relay2
  - platform: gpio
    pin: GPIO25
    name: Relay3
    id: relay3
  - platform: gpio
    pin: GPIO26
    name: Relay4
    id: relay4

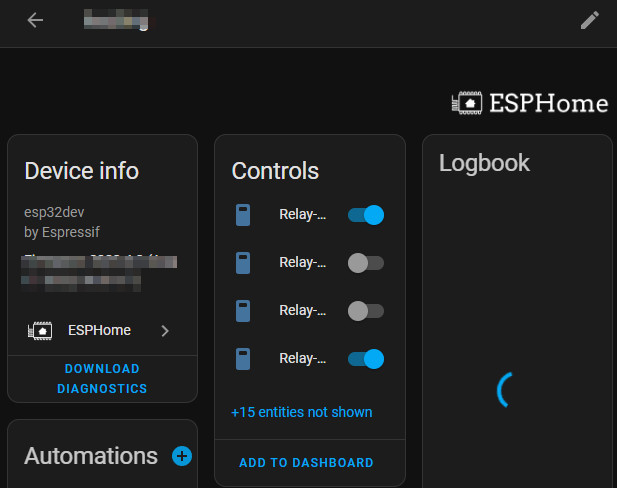

This will make the relays show up as "controls" in Home Assistant.
